背景
最近用 Go 重写了之前用 PHP(Laravel) 写的一个较复杂的接口， 顺便作了个简单的性能测试对比。
目前网上很多性能对比只是简单的作一个 hello world 的对比， 基于实际业务的对比较少，所以记录一下这次对比结果。
HUGOMORE42

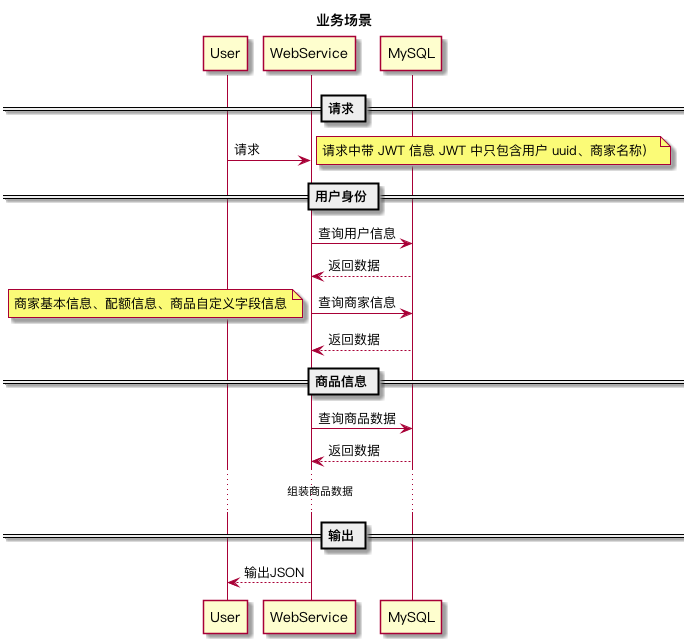

业务场景
这是多一个类似于获取商品详情的接口， 面向的用户是商店工作人员。多商家，每个商家可自定义自己的商品字段。
服务端收到请求大约做了这几件工作：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
@startuml
skinparam defaultFontName "pingFang SC"
title 业务场景
== 请求 ==
User -> WebService: 请求
note right: 请求中带 JWT 信息 JWT 中只包含用户 uuid、商家名称）
== 用户身份 ==
WebService -> MySQL:查询用户信息
MySQL --> WebService: 返回数据
WebService -> MySQL: 查询商家信息
note left: 商家基本信息、配额信息、商品自定义字段信息
MySQL --> WebService: 返回数据
== 商品信息 ==
WebService -> MySQL: 查询商品数据
MySQL --> WebService: 返回数据
... 组装商品数据 ...
== 输出 ==
WebService --> User: 输出JSON
@enduml
|
先表明一下观点， 在一个项目运作过程中（特别是在初期）性能并不是首先要考虑的因素 ，所有读取数据操作均 未使用缓存 （初步估算用户增长规模 项目上线第一年基本不会出现性能瓶颈， 在最经济的人力、物力资源下快速推出新功能才是最重要的 😏 ）。
测试环境
硬件： 阿里云 ECS 2核 4G内存 （购于2014年2月，普通云盘）
操作系统： CentOS 7.3 64位
测试工具： apache ab
为减小因带宽因素影响，测试使用内网网络(Go直接使用内网IP、PHP更改 hosts 文件， 请求从局域网内另一台 ECS 服务器发起)；
机器上同时运行有其它服务。
| 项目 |
PHP |
Go |
| 版本 |
PHP 7.1 |
Go 1.8.3 |
| Web 框架 |
Laravel 5.5 |
Gin 1.2 |
| ORM |
Laravel Eloquent |
XORM |
| JWT 中间件 |
tymon/jwt-auth |
dgrijalva/jwt-go |
PHP 相关的其它重要参数：
nginx:
1.13.3 worker_processes=2, worker_connections=1024
php-fpm:
pm.max_children=20, pm.max_requests=2000
Laravel Cache:
php artisan route:cache
php artisan config:cache

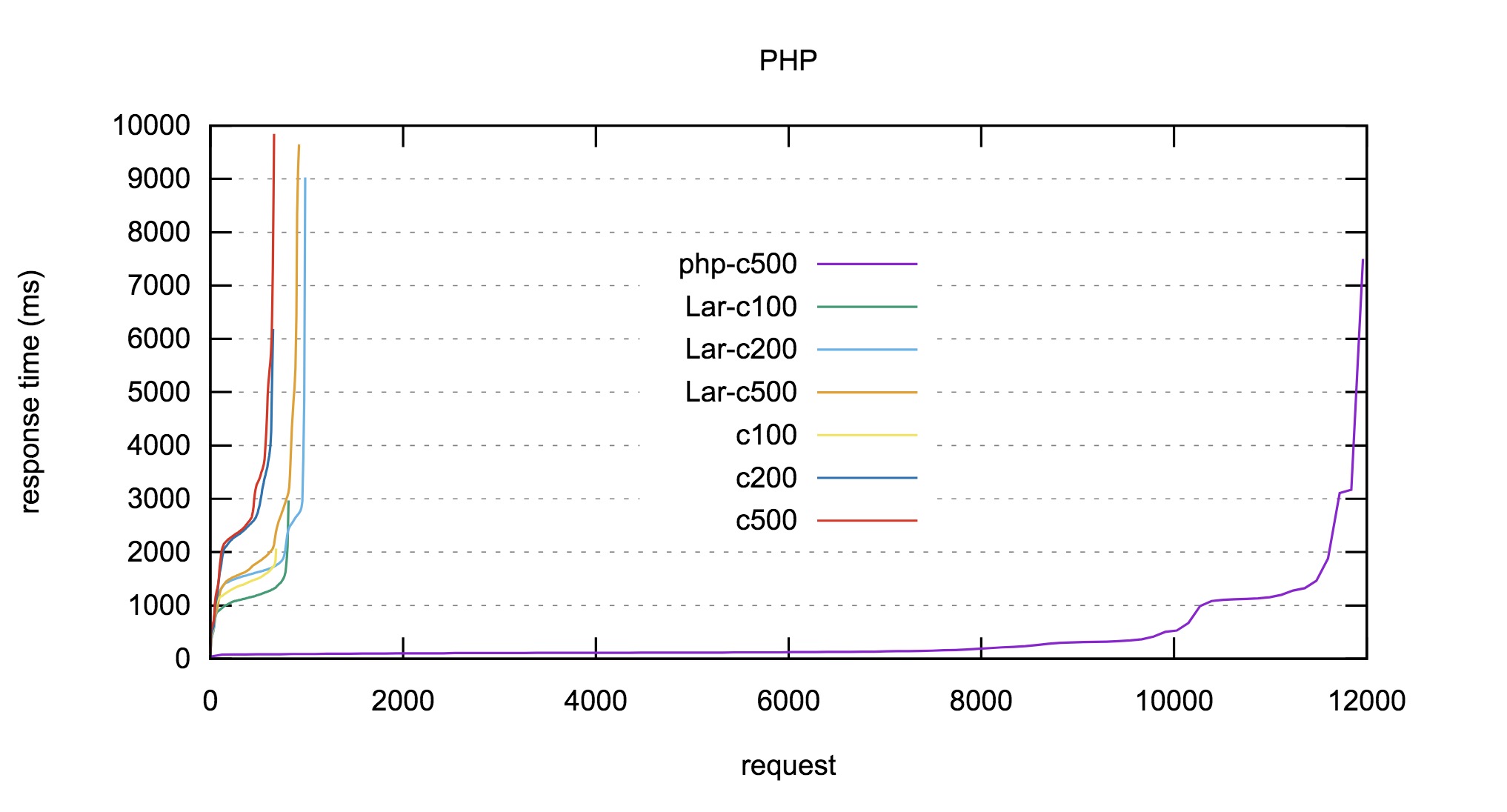

测试数据
PHP: .php -c 600 -t 10
先直接直接输出 helloworld.php 以反映机器大致性能情况。
1
2
3
4
5
|
<?php
// public/helloworld.php
echo 'hello,world!';
|
ab -c 500 -t 10:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software: nginx/1.13.3
Server Hostname: api.***.com
Server Port: 80
Document Path: /helloworld.php
Document Length: 12 bytes
Concurrency Level: 500
Time taken for tests: 10.001 seconds
Complete requests: 11961
Failed requests: 0
Write errors: 0
Total transferred: 2081214 bytes
HTML transferred: 143532 bytes
Requests per second: 1195.95 [#/sec] (mean)
Time per request: 418.078 [ms] (mean)
Time per request: 0.836 [ms] (mean, across all concurrent requests)
Transfer rate: 203.22 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 145 508.1 2 7017
Processing: 14 229 325.1 118 6493
Waiting: 3 229 325.0 118 6493
Total: 41 375 621.6 123 7497
Percentage of the requests served within a certain time (ms)
50% 123
66% 181
75% 310
80% 347
90% 1124
95% 1323
98% 3109
99% 3172
100% 7497 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
1 0 0 181028 553948 1370796 0 0 0 5 1 1 2 1 97 0 1
23 0 0 194260 553948 1374792 0 0 0 0 6025 2311 7 29 56 0 9
20 0 0 182940 553948 1386020 0 0 0 0 19241 6104 17 79 0 0 4
17 0 0 172396 553948 1396988 0 0 0 378 17796 5474 17 74 1 0 9
17 0 0 164180 553952 1407020 0 0 0 356 16665 5237 15 71 0 0 14
24 0 0 153556 553952 1417892 0 0 0 16 18515 5963 16 75 1 0 8
0 0 0 146764 553952 1425468 0 0 0 0 13192 4378 10 51 37 0 2
|
HeyLaravel -c 100 -t 10
直接访问 Laravel 中的测试控制器方法：
1
2
3
4
5
6
7
8
9
10
11
12
13
|
namespace App\Http\Controllers;
use App\Http\Controllers\Controller;
class TestController extends Controller
{
public function hey($uuid)
{
return ['uuid'=> $uuid];
}
}
|
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software: nginx/1.13.3
Server Hostname: api.***.com
Server Port: 80
Document Path: /v1/test/hey/this-is-uuid
Document Length: 23 bytes
Concurrency Level: 100
Time taken for tests: 10.021 seconds
Complete requests: 811
Failed requests: 0
Write errors: 0
Total transferred: 344675 bytes
HTML transferred: 18653 bytes
Requests per second: 80.93 [#/sec] (mean)
Time per request: 1235.639 [ms] (mean)
Time per request: 12.356 [ms] (mean, across all concurrent requests)
Transfer rate: 33.59 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 16 110.5 2 1004
Processing: 90 1141 260.9 1147 2701
Waiting: 84 1141 260.9 1147 2701
Total: 91 1157 287.0 1152 2969
Percentage of the requests served within a certain time (ms)
50% 1152
66% 1219
75% 1271
80% 1306
90% 1424
95% 1553
98% 1922
99% 2086
100% 2969 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
1 0 0 322900 553984 1373104 0 0 0 5 1 1 2 1 97 0 1
43 0 0 311596 553984 1373356 0 0 0 0 5795 2503 51 15 28 0 6
43 0 0 306108 553984 1373904 0 0 0 8 8339 3261 72 19 0 0 9
43 0 0 304828 553988 1375144 0 0 0 6 7692 3067 68 16 0 0 16
40 0 0 303064 553988 1376660 0 0 0 8 8069 3223 71 16 0 0 13
45 0 0 301652 553988 1378288 0 0 0 0 8974 3509 75 18 0 0 7
0 0 0 300816 553992 1379176 0 0 0 6 6699 2756 56 12 31 0 0
|
HeyLaravel -c 200 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software: nginx/1.13.3
Server Hostname: api.***.com
Server Port: 80
Document Path: /v1/test/hey/this-is-uuid
Document Length: 23 bytes
Concurrency Level: 200
Time taken for tests: 10.023 seconds
Complete requests: 930
Failed requests: 0
Write errors: 0
Total transferred: 395250 bytes
HTML transferred: 21390 bytes
Requests per second: 92.79 [#/sec] (mean)
Time per request: 2155.480 [ms] (mean)
Time per request: 10.777 [ms] (mean, across all concurrent requests)
Transfer rate: 38.51 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 29 155.4 2 1006
Processing: 57 1821 776.3 1719 5206
Waiting: 44 1821 776.3 1719 5206
Total: 59 1850 792.3 1730 5208
Percentage of the requests served within a certain time (ms)
50% 1730
66% 1816
75% 1926
80% 2322
90% 2824
95% 3159
98% 4665
99% 4832
100% 5208 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
10
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
1 0 0 300628 553992 1378960 0 0 0 5 1 1 2 1 97 0 1
46 0 0 299852 553992 1379600 0 0 0 6 2301 1335 18 6 76 0 1
37 0 0 298844 553992 1380180 0 0 0 0 9489 3495 82 19 0 0 0
45 0 0 297448 553992 1380952 0 0 0 8 8940 3489 74 17 0 0 9
42 0 0 296320 554000 1382216 0 0 0 34 9076 3511 78 19 0 0 4
43 0 0 294276 554000 1384288 0 0 0 0 10212 3838 81 19 0 0 0
45 0 0 294056 554000 1385776 0 0 0 20 9091 3390 75 20 0 0 6
0 0 0 293792 554000 1386104 0 0 0 0 5031 2435 45 10 42 0 3
|
HeyLaravel -c 500 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software: nginx/1.13.3
Server Hostname: api.***.com
Server Port: 80
Document Path: /v1/test/hey/this-is-uuid
Document Length: 23 bytes
Concurrency Level: 500
Time taken for tests: 10.010 seconds
Complete requests: 920
Failed requests: 0
Write errors: 0
Total transferred: 391000 bytes
HTML transferred: 21160 bytes
Requests per second: 91.91 [#/sec] (mean)
Time per request: 5440.211 [ms] (mean)
Time per request: 10.880 [ms] (mean, across all concurrent requests)
Transfer rate: 38.15 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 10 13.8 2 45
Processing: 86 2191 1498.3 1768 9628
Waiting: 47 2191 1498.4 1767 9628
Total: 87 2201 1499.2 1771 9649
Percentage of the requests served within a certain time (ms)
50% 1771
66% 1978
75% 2485
80% 2710
90% 3302
95% 5093
98% 8661
99% 9151
100% 9649 (longest request)
|
PHP: ab -c 100 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software: nginx/1.13.3
Server Hostname: api.***.com
Server Port: 80
Document Path: /v1/cars/2d11a75ba3e84e31baaf1a998159328c
Document Length: 597 bytes
Concurrency Level: 100
Time taken for tests: 10.018 seconds
Complete requests: 714
Failed requests: 0
Write errors: 0
Total transferred: 713286 bytes
HTML transferred: 426258 bytes
Requests per second: 71.27 [#/sec] (mean)
Time per request: 1403.092 [ms] (mean)
Time per request: 14.031 [ms] (mean, across all concurrent requests)
Transfer rate: 69.53 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 2 1.7 2 11
Processing: 70 1294 316.5 1308 2469
Waiting: 63 1294 316.6 1308 2469
Total: 72 1297 315.5 1309 2471
Percentage of the requests served within a certain time (ms)
50% 1309
66% 1414
75% 1482
80% 1550
90% 1674
95% 1750
98% 1857
99% 1951
100% 2471 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
1 0 0 314660 551540 1366952 0 0 0 5 1 1 2 1 97 0 1
45 0 0 314568 551540 1366920 0 0 0 2 3827 1753 30 8 61 0 1
44 0 0 314016 551540 1367408 0 0 0 8 10766 3849 78 19 0 0 3
42 0 0 313388 551540 1368320 0 0 0 0 10276 3614 80 20 0 0 0
45 0 0 312020 551544 1369364 0 0 0 6 9566 3425 73 19 0 0 7
40 0 0 310864 551544 1370708 0 0 0 8 10025 3714 76 20 0 0 4
42 0 0 309544 551544 1371792 0 0 0 0 9700 3452 72 17 0 0 11
1 0 0 309764 551552 1371968 0 0 0 70 2962 1640 21 5 71 0 2
0 0 0 309700 551552 1371968 0 0 0 0 652 974 3 1 96 0 1
0 0 0 309732 551560 1371972 0 0 2 56 511 800 2 0 96 0 1
0 0 0 309724 551564 1371976 0 0 0 54 536 811 2 1 96 1 1
0 0 0 309724 551564 1371980 0 0 0 0 744 956
|
Go: ab -c 100 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software:
Server Hostname: 10.*.*.*
Server Port: 9999
Document Path: /cars/2d11a75ba3e84e31baaf1a998159328c
Document Length: 512 bytes
Concurrency Level: 100
Time taken for tests: 10.003 seconds
Complete requests: 10253
Failed requests: 0
Write errors: 0
Total transferred: 6520908 bytes
HTML transferred: 5249536 bytes
Requests per second: 1024.95 [#/sec] (mean)
Time per request: 97.566 [ms] (mean)
Time per request: 0.976 [ms] (mean, across all concurrent requests)
Transfer rate: 636.59 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 2 2.9 1 62
Processing: 16 95 21.1 94 205
Waiting: 9 94 21.0 93 205
Total: 17 97 21.3 96 206
Percentage of the requests served within a certain time (ms)
50% 96
66% 104
75% 109
80% 113
90% 123
95% 133
98% 146
99% 160
100% 206 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
10
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
1 0 0 310256 551576 1366976 0 0 0 5 1 1 2 1 97 0 1
4 0 0 308348 551576 1367184 0 0 0 6 18804 1492 44 25 29 0 2
2 0 0 306916 551576 1368336 0 0 0 0 25924 1373 64 33 0 0 2
2 0 0 305028 551576 1369760 0 0 0 6 28024 1273 65 32 1 0 1
6 0 0 304132 551576 1370884 0 0 0 0 27345 1453 65 33 1 0 1
2 0 0 302912 551576 1371872 0 0 0 0 26417 1547 64 33 1 0 2
0 0 0 303212 551576 1372100 0 0 0 6 6186 995 18 8 67 0 7
0 0 0 303212 551576 1372100 0 0 0 0 532 799 2 0 97 0 0
|
PHP: ab -c 200 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software: nginx/1.13.3
Server Hostname: api.***.com
Server Port: 80
Document Path: /v1/cars/2d11a75ba3e84e31baaf1a998159328c
Document Length: 597 bytes
Concurrency Level: 200
Time taken for tests: 10.010 seconds
Complete requests: 650
Failed requests: 0
Write errors: 0
Total transferred: 649350 bytes
HTML transferred: 388050 bytes
Requests per second: 64.94 [#/sec] (mean)
Time per request: 3079.852 [ms] (mean)
Time per request: 15.399 [ms] (mean, across all concurrent requests)
Transfer rate: 63.35 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 5 4.9 2 24
Processing: 78 2415 930.8 2371 6184
Waiting: 63 2415 930.9 2371 6184
Total: 79 2420 928.1 2373 6186
Percentage of the requests served within a certain time (ms)
50% 2373
66% 2564
75% 2703
80% 2946
90% 3555
95% 3883
98% 5077
99% 5582
100% 6186 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
10
11
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
2 0 0 292928 553836 1375152 0 0 0 5 1 1 2 1 97 0 1
41 0 0 291944 553836 1375872 0 0 0 6 2716 1432 20 7 73 0 1
43 0 0 290984 553836 1376396 0 0 0 0 9870 3417 81 20 0 0 0
46 0 0 290188 553836 1376808 0 0 0 8 10438 3634 77 19 0 0 3
41 0 0 289624 553840 1377208 0 0 0 6 10064 3596 79 19 0 0 1
39 0 0 288948 553840 1377832 0 0 0 0 7952 3025 65 16 0 0 19
37 0 0 289720 553840 1378656 0 0 0 8 9836 3471 76 20 0 0 5
0 0 0 289720 553844 1378824 0 0 0 6 7470 2719 58 13 29 0 1
0 0 0 289520 553844 1378824 0 0 0 36 608 907 2 1 96 0 0
|
Go: ab -c 200 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software:
Server Hostname: 10.*.*.*
Server Port: 9999
Document Path: /cars/2d11a75ba3e84e31baaf1a998159328c
Document Length: 512 bytes
Concurrency Level: 200
Time taken for tests: 10.014 seconds
Complete requests: 9665
Failed requests: 0
Write errors: 0
Total transferred: 6146940 bytes
HTML transferred: 4948480 bytes
Requests per second: 965.19 [#/sec] (mean)
Time per request: 207.213 [ms] (mean)
Time per request: 1.036 [ms] (mean, across all concurrent requests)
Transfer rate: 599.47 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 3 5.1 1 63
Processing: 25 202 47.0 195 481
Waiting: 9 201 46.9 195 481
Total: 26 204 47.7 197 483
Percentage of the requests served within a certain time (ms)
50% 197
66% 215
75% 227
80% 236
90% 262
95% 294
98% 334
99% 364
100% 483 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
10
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
10 0 0 291748 553844 1376828 0 0 0 5 1 1 2 1 97 0 1
3 0 0 285760 553844 1377052 0 0 0 6 17493 1460 40 24 35 0 1
6 0 0 284888 553844 1377836 0 0 0 0 27816 1635 65 34 1 0 1
5 0 0 283936 553844 1378744 0 0 0 6 25772 1546 63 31 0 0 6
6 0 0 283092 553844 1379264 0 0 0 0 24097 1450 61 29 0 0 10
7 0 0 282000 553844 1379904 0 0 0 0 26060 1667 61 31 1 0 6
1 0 0 283292 553844 1379756 0 0 0 6 10354 1181 25 14 55 0 5
0 0 0 283300 553844 1379748 0 0 0 0 619 926 2 0 97 0 1
|
PHP ab -c 500 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software: nginx/1.13.3
Server Hostname: api.***.com
Server Port: 80
Document Path: /v1/cars/2d11a75ba3e84e31baaf1a998159328c
Document Length: 597 bytes
Concurrency Level: 500
Time taken for tests: 10.013 seconds
Complete requests: 662
Failed requests: 0
Write errors: 0
Total transferred: 661338 bytes
HTML transferred: 395214 bytes
Requests per second: 66.12 [#/sec] (mean)
Time per request: 7562.409 [ms] (mean)
Time per request: 15.125 [ms] (mean, across all concurrent requests)
Transfer rate: 64.50 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 49 189.9 2 1005
Processing: 100 2778 1463.9 2418 9821
Waiting: 66 2778 1464.0 2418 9821
Total: 102 2827 1497.4 2429 9843
Percentage of the requests served within a certain time (ms)
50% 2429
66% 2676
75% 3323
80% 3501
90% 5084
95% 5626
98% 7520
99% 8759
100% 9843 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
1 0 0 294180 553860 1369112 0 0 0 5 1 1 2 1 97 0 1
46 0 0 290692 553860 1371060 0 0 0 24 3593 1589 26 10 62 0 1
43 0 0 287144 553860 1372832 0 0 0 0 9621 3446 78 20 0 0 2
39 0 0 285520 553860 1374092 0 0 0 8 9761 3458 79 19 0 0 2
43 0 0 284148 553864 1375348 0 0 0 6 9733 3448 74 20 0 0 6
42 0 0 282448 553864 1376636 0 0 0 0 10608 3741 80 19 0 0 1
40 0 0 287140 553868 1376548 0 0 0 64 9933 3341 75 20 0 0 4
0 0 0 286936 553868 1376964 0 0 0 0 7922 3100 59 12 24 0 5
0 0 0 287356 553868 1376928 0 0 0 14 1279 1234 9 3 88 0 1
0 0 0 287732 553872 1376520 0 0 0 6 734 993 2 1 93 0 3
0 0 0 287804 553872 1376480 0 0 0 0 526 835 2 0 96 0 1
1 0 0 287588 553872 1376480 0 0 0 36 817 1027 2 1 96 0 1
...
|
Go: ab -c 500 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software:
Server Hostname: 10.*.*.*
Server Port: 9999
Document Path: /cars/2d11a75ba3e84e31baaf1a998159328c
Document Length: 512 bytes
Concurrency Level: 500
Time taken for tests: 10.006 seconds
Complete requests: 9513
Failed requests: 0
Write errors: 0
Total transferred: 6051540 bytes
HTML transferred: 4871680 bytes
Requests per second: 950.75 [#/sec] (mean)
Time per request: 525.902 [ms] (mean)
Time per request: 1.052 [ms] (mean, across all concurrent requests)
Transfer rate: 590.63 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 45 207.6 1 3008
Processing: 43 463 138.5 439 1190
Waiting: 9 462 138.4 438 1190
Total: 44 508 251.7 446 3406
Percentage of the requests served within a certain time (ms)
50% 446
66% 484
75% 513
80% 542
90% 732
95% 985
98% 1440
99% 1529
100% 3406 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
10
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
1 0 0 288524 553884 1376092 0 0 0 5 1 1 2 1 97 0 1
0 0 0 288532 553884 1376092 0 0 0 6 626 831 2 1 96 0 1
2 0 0 272128 553884 1376700 0 0 0 2 12055 1137 29 15 48 0 8
2 0 0 269884 553884 1377772 0 0 0 0 29165 1347 62 34 0 0 3
8 0 0 267872 553884 1378948 0 0 0 6 28029 1476 65 34 0 0 0
5 0 0 266756 553884 1379952 0 0 0 0 27448 1287 66 34 0 0 0
2 0 0 264784 553884 1381204 0 0 0 6 28451 1499 64 34 0 0 1
0 0 0 267300 553884 1380992 0 0 0 0 17680 1118 44 22 34 0 1
|
接下来的测试 PHP 就不参与了。
Go: ab -c 1000 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software:
Server Hostname: 10.*.*.*
Server Port: 9999
Document Path: /cars/2d11a75ba3e84e31baaf1a998159328c
Document Length: 512 bytes
Concurrency Level: 1000
Time taken for tests: 10.001 seconds
Complete requests: 9420
Failed requests: 0
Write errors: 0
Total transferred: 5993028 bytes
HTML transferred: 4824576 bytes
Requests per second: 941.95 [#/sec] (mean)
Time per request: 1061.626 [ms] (mean)
Time per request: 1.062 [ms] (mean, across all concurrent requests)
Transfer rate: 585.23 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 250 631.0 1 3039
Processing: 70 726 188.4 689 2350
Waiting: 9 725 188.3 689 2350
Total: 71 976 669.1 732 4453
Percentage of the requests served within a certain time (ms)
50% 732
66% 834
75% 960
80% 1155
90% 1728
95% 2014
98% 3767
99% 3832
100% 4453 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
10
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
1 0 0 268840 553908 1379060 0 0 0 5 1 1 2 1 97 0 1
0 0 0 268920 553908 1379004 0 0 0 0 567 818 2 1 97 0 0
2 0 0 262484 553908 1379692 0 0 0 6 12628 1451 29 15 51 0 5
2 0 0 248940 553908 1381012 0 0 0 0 24177 1171 60 33 0 0 8
6 0 0 248364 553908 1381712 0 0 0 6 26423 1407 63 35 0 0 2
2 0 0 246628 553908 1382684 0 0 0 0 26805 1246 65 33 0 0 2
7 0 0 246296 553908 1383092 0 0 0 0 28097 1352 65 33 1 0 1
0 0 0 250588 553908 1381952 0 0 0 18 18602 1422 47 23 30 0 0
|
Go: ab -c 2000 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software:
Server Hostname: 10.*.*.*
Server Port: 9999
Document Path: /cars/2d11a75ba3e84e31baaf1a998159328c
Document Length: 512 bytes
Concurrency Level: 2000
Time taken for tests: 10.001 seconds
Complete requests: 9287
Failed requests: 0
Write errors: 0
Total transferred: 5907168 bytes
HTML transferred: 4755456 bytes
Requests per second: 928.62 [#/sec] (mean)
Time per request: 2153.734 [ms] (mean)
Time per request: 1.077 [ms] (mean, across all concurrent requests)
Transfer rate: 576.82 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 320 969.5 1 7019
Processing: 149 1158 606.9 972 7059
Waiting: 10 1158 606.9 971 7059
Total: 151 1478 1158.4 1088 9818
Percentage of the requests served within a certain time (ms)
50% 1088
66% 1421
75% 1712
80% 1893
90% 2562
95% 3781
98% 4759
99% 7853
100% 9818 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
10
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
1 0 0 255276 553916 1377432 0 0 0 5 1 1 2 1 97 0 1
3 0 0 251624 553916 1379996 0 0 0 6 5694 1353 16 7 74 0 2
5 0 0 229832 553916 1380964 0 0 0 0 27782 1264 63 34 0 0 3
2 0 0 229920 553916 1381388 0 0 0 6 26797 1342 65 33 0 0 1
2 0 0 229228 553916 1381388 0 0 0 14 26937 1249 66 32 0 0 2
2 0 0 230024 553916 1381188 0 0 0 0 25927 1326 63 33 1 0 2
3 0 0 228696 553916 1381328 0 0 0 6 27574 1325 66 33 0 0 0
0 0 0 233880 553916 1378344 0 0 0 0 2659 864 9 5 83 0 2
|
Go: ab -c 3000 -t 10
ab:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
Server Software:
Server Hostname: 10.*.*.*
Server Port: 9999
Document Path: /cars/2d11a75ba3e84e31baaf1a998159328c
Document Length: 512 bytes
Concurrency Level: 3000
Time taken for tests: 10.000 seconds
Complete requests: 8606
Failed requests: 0
Write errors: 0
Total transferred: 5473416 bytes
HTML transferred: 4406272 bytes
Requests per second: 860.57 [#/sec] (mean)
Time per request: 3486.051 [ms] (mean)
Time per request: 1.162 [ms] (mean, across all concurrent requests)
Transfer rate: 534.50 [Kbytes/sec] received
Connection Times (ms)
min mean[+/-sd] median max
Connect: 1 238 782.4 1 7020
Processing: 224 2194 1399.7 1743 9445
Waiting: 9 2193 1399.7 1743 9445
Total: 225 2432 1595.4 1951 9611
Percentage of the requests served within a certain time (ms)
50% 1951
66% 2566
75% 3047
80% 3417
90% 4628
95% 5739
98% 7404
99% 8209
100% 9611 (longest request)
|
vmstat:
1
2
3
4
5
6
7
8
9
10
|
procs -----------memory---------- ---swap-- -----io---- -system-- ------cpu-----
r b swpd free buff cache si so bi bo in cs us sy id wa st
1 0 0 189716 553948 1376020 0 0 0 5 1 1 2 1 97 0 1
4 0 0 178172 553948 1382220 0 0 0 0 8153 1510 24 10 66 0 0
5 0 0 173428 553948 1383760 0 0 0 30 28276 1243 66 33 0 0 0
3 0 0 168212 553948 1384200 0 0 0 0 26184 1204 66 33 0 0 2
3 0 0 166308 553948 1384388 0 0 0 6 26741 1177 61 32 0 0 7
6 0 0 163104 553948 1384352 0 0 0 0 24991 1344 64 32 0 0 4
2 0 0 164008 553948 1384828 0 0 0 0 26093 1347 61 32 0 0 7
0 0 0 173996 553948 1377480 0 0 0 6 11534 1093 30 16 50 0 3
|
总结
用 gnuplot 把 Apache Ab 对 Go 和 PHP 的测试结果数据做了个图表：
PHP:
Go:
